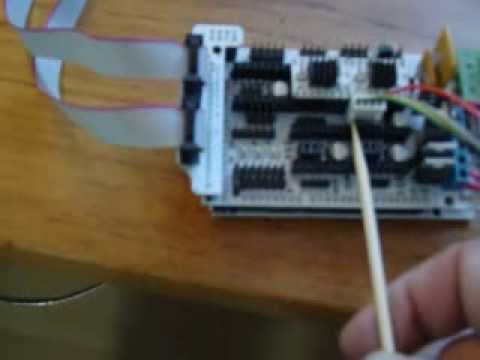

Reprap - How to wire your Ramps 1.4 3D printer board Avoid some easy mistakes.


How to wire up your motors, end stops, thermistors, heatbed, hotend, 12 volt power AC power and LCD screen on a RAMPS 1.4 board with an arduino mega 2560. Use caution when working with any electricity. Only trained persons qualified to do so should tamper with any power supply. You should never turn on a power supply with the cover removed, this was done to show how it was wired only. Boards and stepper motor drivers from dx.com all motors and hot end parts from robotdigg.com some files from makerfarm.com All motors are 40 mm Nema 17 all wires to heating elements are 16 gauge multi strand copper. You need thremistors, not thermocouples for this. Good luck!!
